2 Input 6 Output Stage Audio Processor Speaker

  • Bundle: Bundle 1

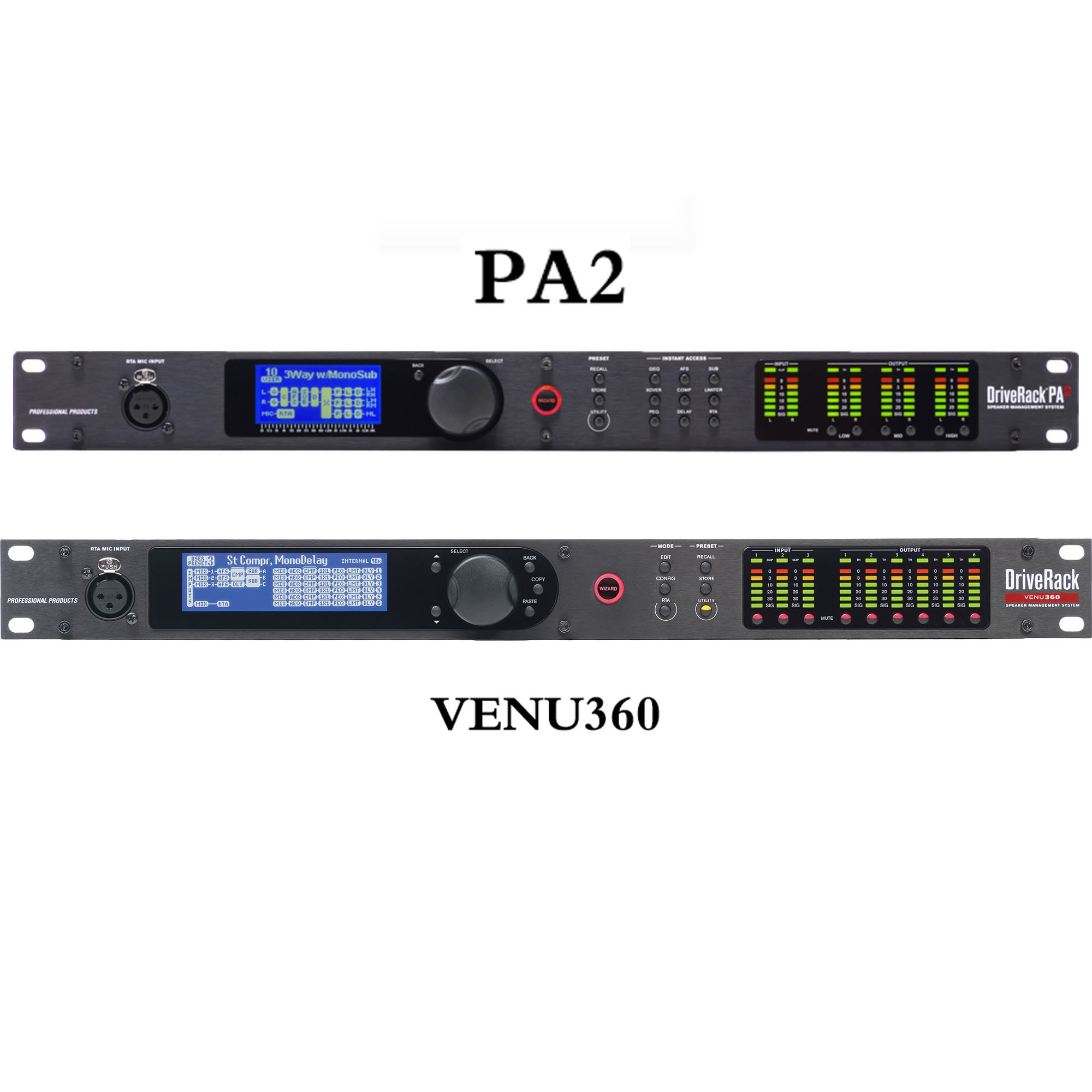

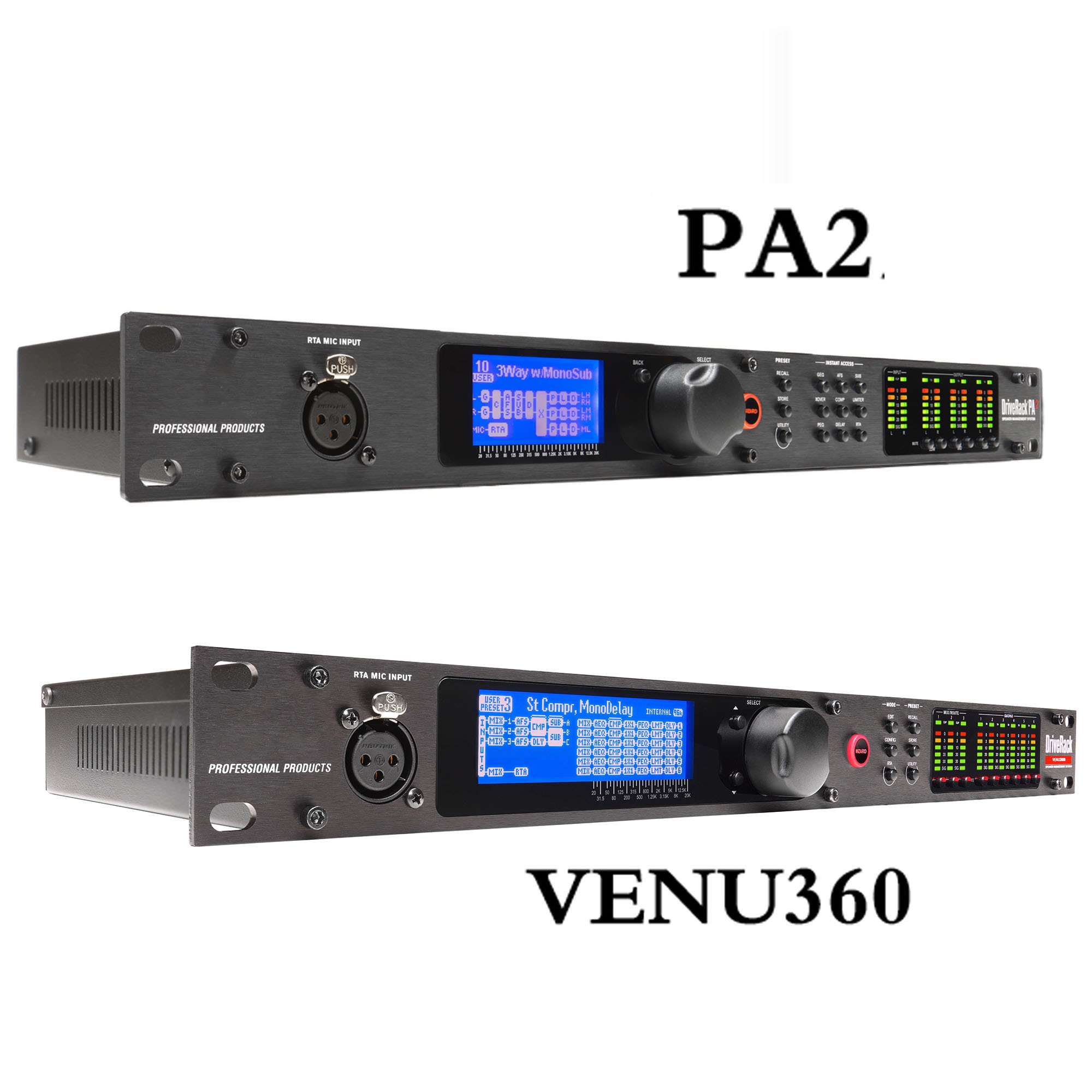

  • Model Number: PA2 /VENU360
  • Type: Signal Processing
  • Brand Name: PaulKitson
  • Frequency Range: 20Hz-20KHz
  • Number of Outputs: 6 line outputs
  • Number of Inputs: 2 line inputs, i RTA mic input
  • Output Impedance: 120 ohm
  • Max Output: +20dBu
  • Input Delay Length: 100ms
  • Sample Rate:: 48kHz
  • Voltage: 110v/220v
  • plug: European plug or American plug
Packing List:
audio processor x1
Using Manuel x 1
Power cable x1

Analog input:
Number of inputs: 2 inputs, 1 RTA microphone input
Connector: 2 x XLR bus input, 1 x XLR female RTA microphone input
Microphone input: electronic balance / RF filter / circuit input level: >50k
Maximum input level (line input): >+ 20 dBu
Common mode rejection ratio: >45dB
Phantom power supply for microphone preamplifier: + 15 VDC

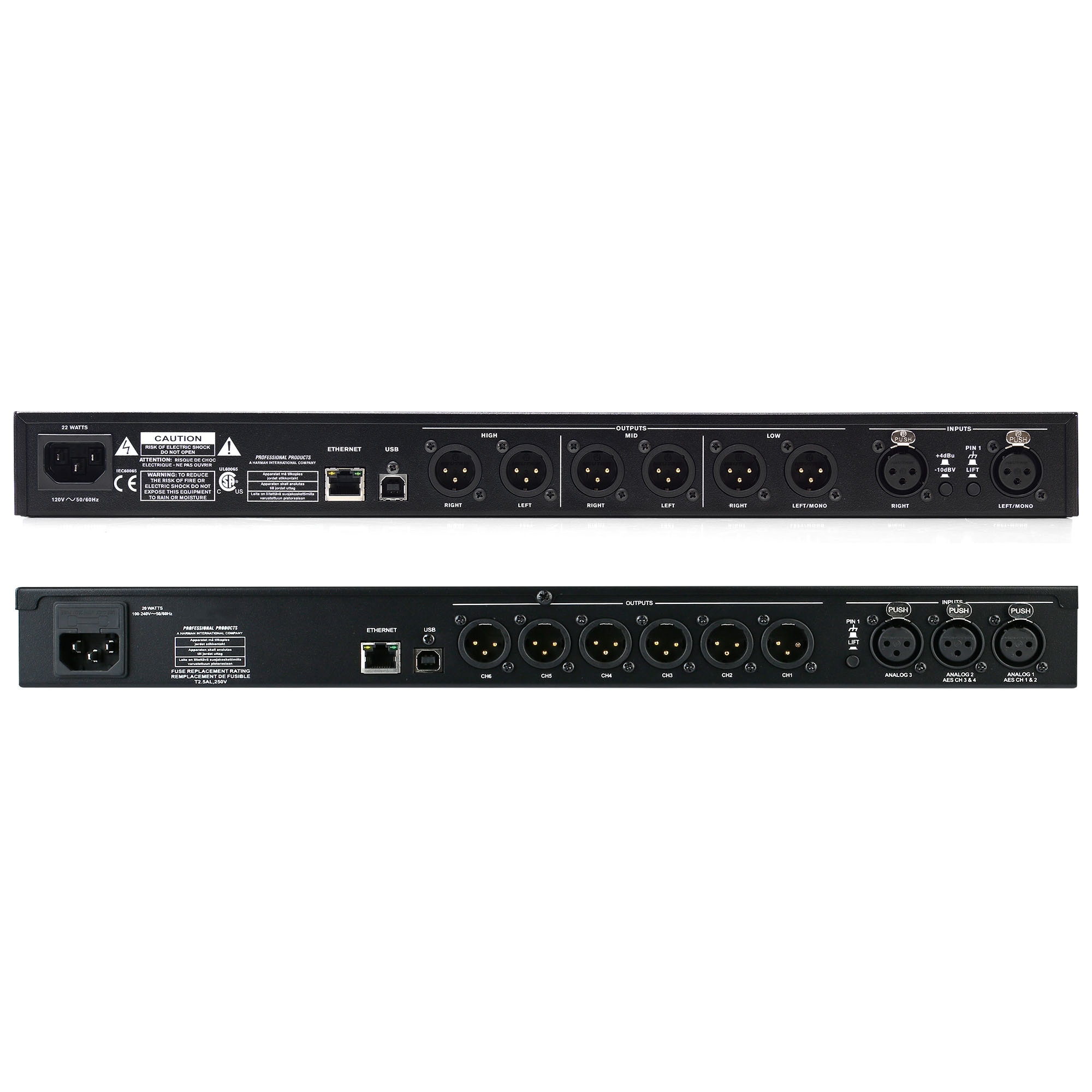

Analog output:
Number of outputs: 6-wire output
Connector: XLR male plug
Tpe: Electronic balance, RF filter
Maximum output level: + 20 dB
Quasi-delay: Up to 10 milliseconds per output channel

A/D performance:
A/D dynamic range: 24-bit +112dB -110dB with A/D converter with dbx type IVTM conversion system
Type IV dynamic range: +123 db with transient materials, +22khz, 121 decibels (no weighted materials), 22khz 115 db standard configuration, program materials, +22khz
D/A converter: 24 bits
Dynamic range: +112db -110db

System performance
Internal processing word length: 32-bit floating point
Sampling rate: 48 khz
Dynamic range: +110 db -107 db
THD+ noise: typical value is 0.003% + 4 dbu, 1 khz, 0 db
Gain frequency response: Crosstalk between signal channels: 20 hz-20 khz, + 0 /- 0. 5 db
Delay: Input and output: 1.847 milliseconds, <- 110 decibels, -120 decibels (input and output: -100 decibels)
Power supplyWorking voltage: 100-120V 50/60 Hz or 220-240V AC 50/60 Hz Power consumption: 22W

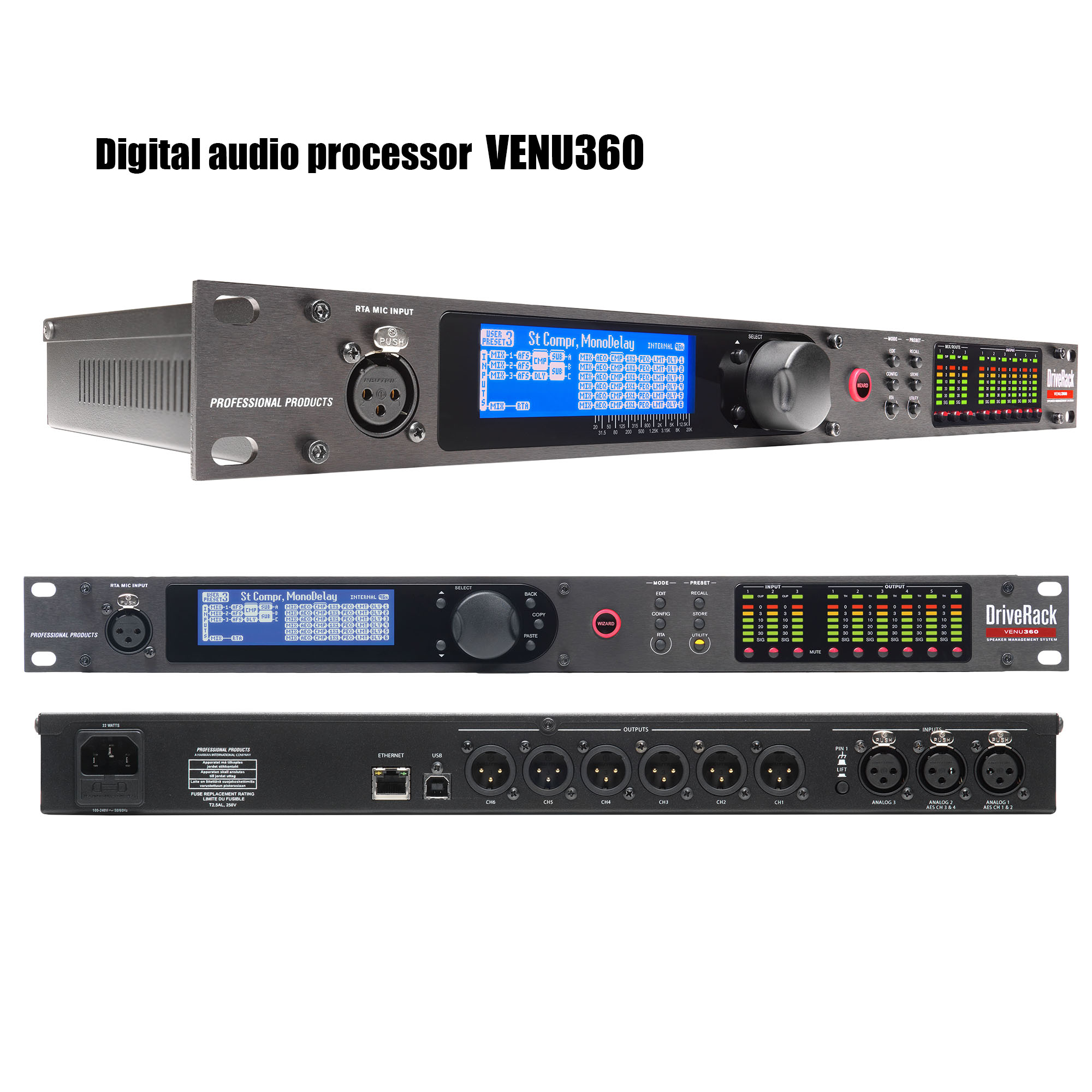

VENU360

Features

• Standard, BLU Link, & Dante Model Versions Available
• Up to 5X6 Routing (7X6 With BLU Link or Dante Models) with 3X6 Signal Processing
• 24-Bit A/D & D/A Converters
• Type IV™ Conversion
• 48 or 96 kHz, 32-Bit Floating-Point Processing
• Sample Rate Conversion
• Setup Wizard for Easy System Configuration
• Level Assist Wizard for System Level Balancing
• AutoEQ™ Wizard for Fast & Accurate Room Equalization using 10-Band Parametric EQ
• AFS® Wizard for Easy & Accurate Feedback Suppression
• Support for Multi-Mono, Stereo, LCR, & Aux-Fed Sub Input Configurations
• Selectable 31-Band Graphic EQ or 8-Band Parametric EQ with Narrow Notch Capabilities
• Input Delay Processing for Aligning the Sound System to the Stage Backline
• Fill Delay Processing for Balcony & Tower Delays
• Subharmonic Synthesis for Deep, Punchy Bass
• Compression
• Crossover with Support for Full Range up to Mono 6-Way Configurations
• Selectable Crossover Filter Types & Slope Rates with Adjustable Polarity & Variable Phase Control
• Up to 3000ms Total Cascaded Delay Time (3 Configurable Delay Modules at 1000ms Each)
• 8-Band Output Parametric EQs for Speaker Tunings
• Output Driver Alignment Delays for Multi-Way Systems
• PeakStopPlus™ Output Limiters
• Built-In Signal Generator & RTA for System Fine-Tuning & Troubleshooting
• 3 XLR Inputs (Selectable Between 4 AES or 3 Analog Input Channels)
• 6 Analog XLR Outputs
• Front-Panel RTA Mic Input with 48V Phantom Power
• Front-Panel Input / Output Mute Buttons
• Front-Panel Copy / Paste Functionality
• 6-Segment Front-Panel Signal Meters with Input Clip & Output Limiter Indicators
• Front-Panel Lockout
• App Security Lockout
• Large, Bright, Easy-To-Read LCD Display
• 25 Factory / 75 User Presets
• Various Speaker & Amplifier Tunings Included

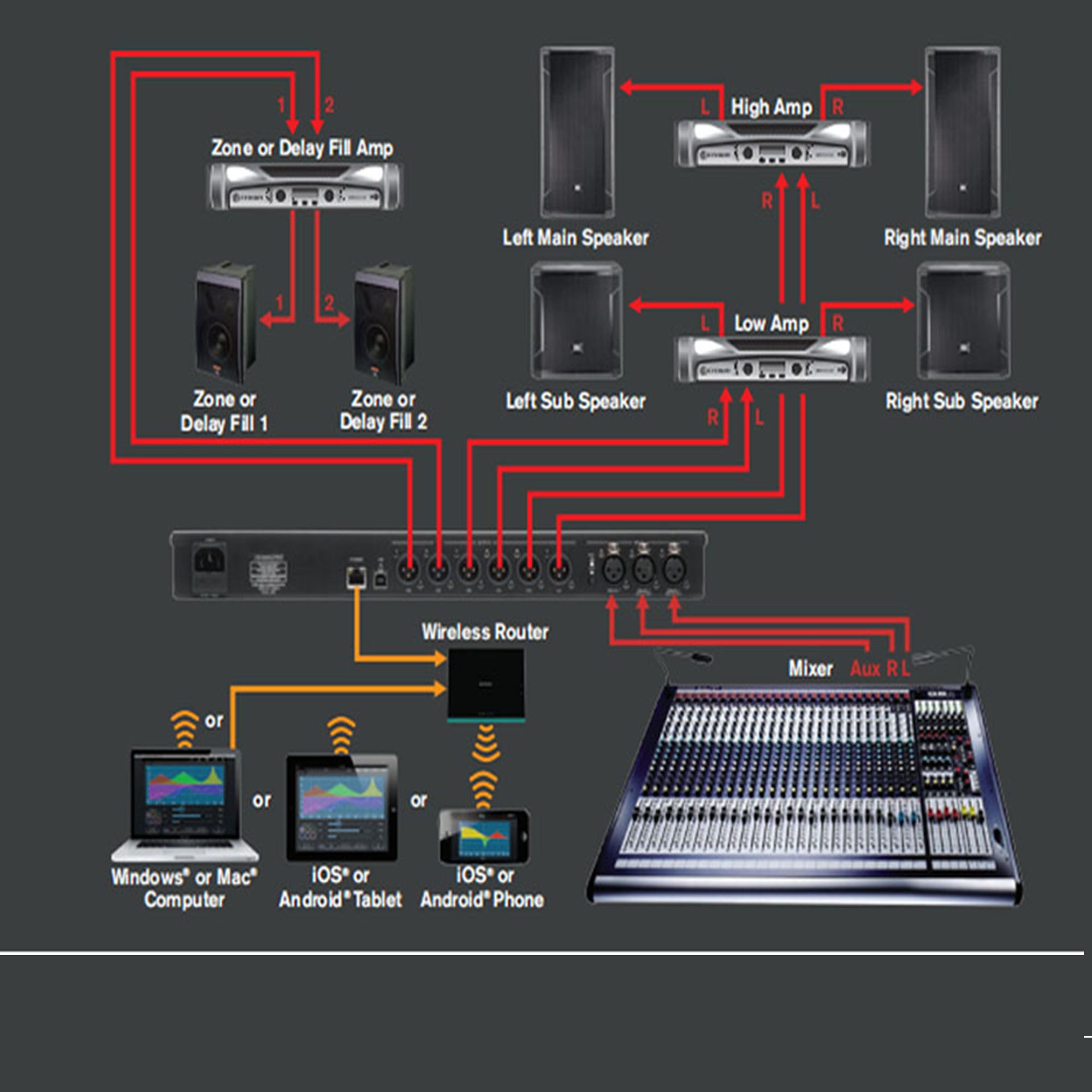

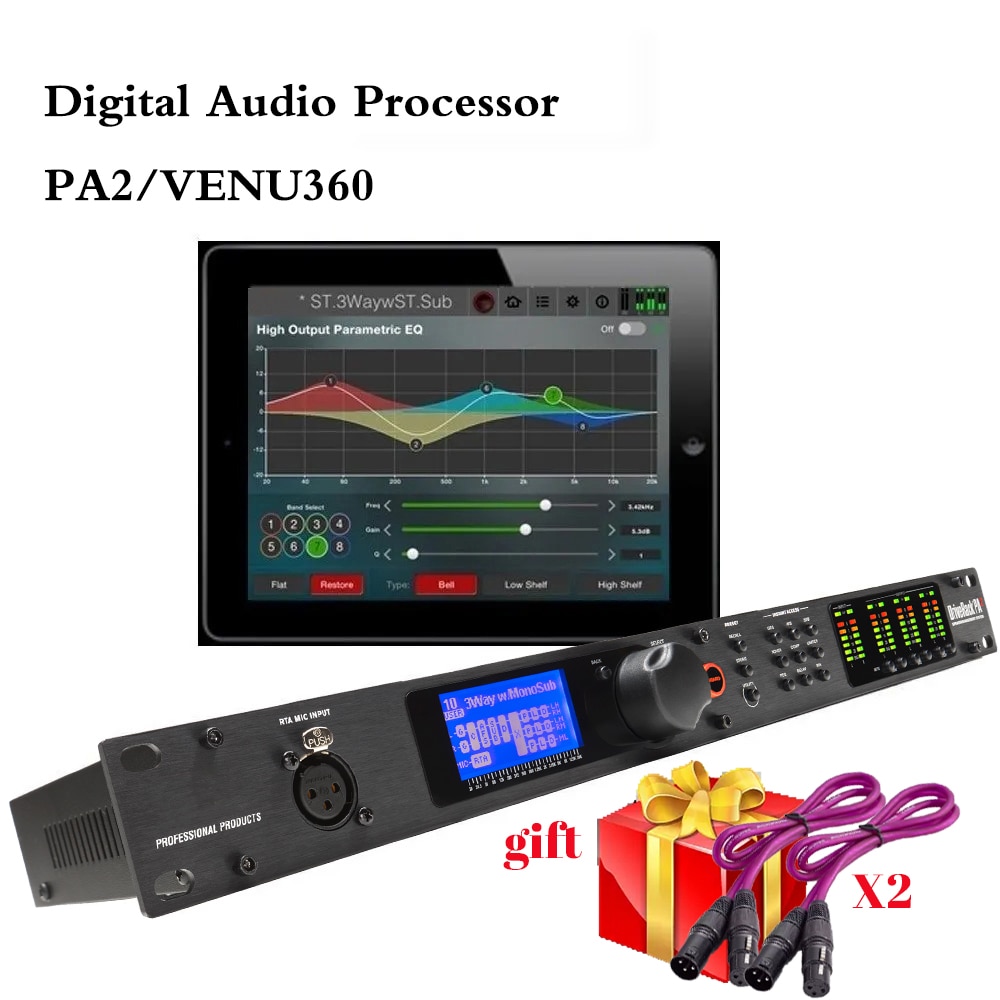

• Network Control via the Free VENU360 Control Application for iOS®, Android™, Mac®, & Windows® Compatible Devices
